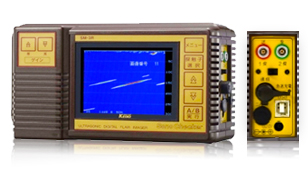

Manual Rail Flaw Detection Device
OVERVIEW
It is a portable type flaw detector that can easily check the cracks of the rail using three types of transducers.
CHARACTERISTIC
- Non-destructive testing equipment for railway use with small size and one hand
- Possible to display A-scan and B-scan
- USB cable can be used to directly connect the test machine to the computer and view the test screen on the PC
SPECIFICATION
| Power | Built-in rechargeable Ni-MH battery |
|---|---|
| Continuous measurement time | About 4 hours |
| Charging method | AC adapter |
| Operating temperature range | -5℃~+40℃ |
| Weight | About 820g (Include battery) |
| Dimension | W175*H101*D74(mm) |
| Screen Size | 3.5 Inches |
| Quantity of image storage | Approx. 1,000 sheets |
| Configure transducer |

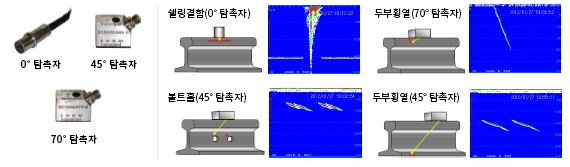

0° vertical : shelling , Horizontal cracking, bottom corrosion 45° angled : Transverse crack, bolt hole 70° angled : Rail Head Transverse crack
Transducer Display
|
| Other | It can be used in rain. Supply Special cover |
